AC Light Dimmer Module, 4 Channel, 3.3V/5V logic, AC 50/60hz, 110V~400V, 10A per channel
- Free worldwide shipping
- In stock, ready to ship
SPECIFICATIONS
Brand Name: RobotDyn
Hign-concerned Chemical: None
Logic: 3.3V/5V
Model Number: Mod-Dimmer-10A-4L
Origin: Mainland China
TRIAC: BTA16-400B
VAC: 50/60hz, 110~600V
Zero-Cross Optoisolator: MOC3021S
* If total power load over 20A, pls to connect the power IN-L to 2 terminals

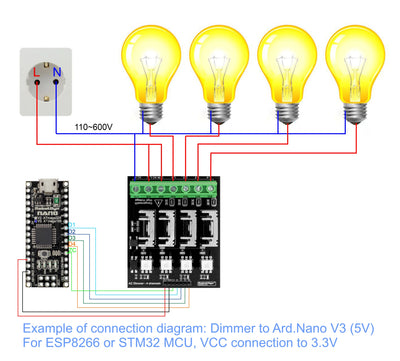

Library:
Dimmer Library (RBDdimmer.h):https://github.com/RobotDynOfficial/RBDDimmer
This library can simplify user code with following functions:
1. Function dimmerLamp - this function initializes the number of operating pin and is defined by the user
Example:
a.dimmerLamp dimmer(4); dimmer output DIM/PSM is initialized on the pin 4 for the bords WITHOUT changable ZERO-CROSS input pin (AVR, Ard. M0/Zero)
b.dimmerLamp dimmer(4, 2); dimmer output DIM/PSM is initialized on the pin 4 and zero-cross initialized on pin 2. Only for boards whith changable zero-cross(ESP32, ESP8266, Ard. Due)
2. Function begin port initialization, timer and external interrupt from zero-cross.
Example:
dimmer.begin(NORMAL_MODE, ON/OFF); port initialization, work mode choice, ON/OFF.
Parameter 1: dimmer working modes consist of two choices - NORMAL_MODE and TOGGLE_MODE
a. NORMAL_MODE to make dimmer work in defined value from 0 to 100 (%) (integer)
Example of this mode located in \RBDdimmer\examples\SimpleDimmer
b. TOGGLE_MODE smooth change of dimming value up or down in a defined range. This solutions implies change of dimming values by means of hardware timer, without using the cycle code.
Example of this mode located in \RBDdimmer\examples\SimpleToggleDimmer
Parameter 2: ON/OFF.
a. ON - turns timer ON, allows to use dimmer.
b. OFF - turns timer parameters OFF, prevents the use of dimmer.
3. Function setPower sets dimming value from 0 to 100%
Example: dimmer.setPower(90);
4. Function getPower to display current dimming value
Example: Serial.print(dimmer.getPower()); Result 0~100 int
5. Function setMode sets and changes the work mode (NORMAL_MODE and TOGGLE_MODE)
dimmer.setMode(NORMAL_MODE/TOGGLE_MODE)
6. Function getMode displays values of current work mode
Example: Serial.print(dimmer.getPower()); Result 0 (NORMAL_MODE) or 1 (TOGGLE_MODE)
7. Function setState sets dimming state ON/OFF
Example: dimmer.setState(ON); delay(100); dimmer.setState(OFF);
8. Function getState displays current state of dimmer
Serial.print(dimmer.getState()); Result 0 (OFF) or 1 (ON)
9. Function changeState changes dimmer state to the opposite one
Пример dimmer.setState(ON); delay(100); dimmer.changeState; delay(100);
10. Function toggleSettings smooth change of dimming value up or down in a defined range
Example located in \RBDdimmer\examples\SimpleToggleDimmerAC Light Dimmer Module for PWM control, 4 Channels, 3.3V/5V logic, AC 50/60hz, 220V/110V
Product Overview
This one is the biggestAC Dimmer, we have now. It’s just like other 2 variations, but has 4 channels. So all of your lamps, elements, fans, etc can be connected here in 1 device. And it will smoothly change the light brightness, turn ON/OFF electronic devices at the rate you want.
In the tutorial, you can see a simple example of what can be done with it.
Check out other options:
1 channel Dimmer
2 channel Dimmer
Specification
Power |
up to 400V (10A per channel) |
AC frequency |
50/60 Hz |
TRIAC |
BTA16 — 600B |
Isolation |
Optocoupler |
Logic level |
3.3V/5V |
Zero point |
Logic level |
Modulation (PSM) |
dimming 0~100% |
Signal current |
>10mA to channel |
Environment: |
|
ROHS3 |
Compliant |
Library and sketch examples:
Dimmer Library (RBDdimmer.h):https://github.com/RobotDynOfficial/RBDDimmer
Video channel:https://www.youtube.com/channel/UCh3PdwD_x7tg5sUUt3EfpfQ/videos
